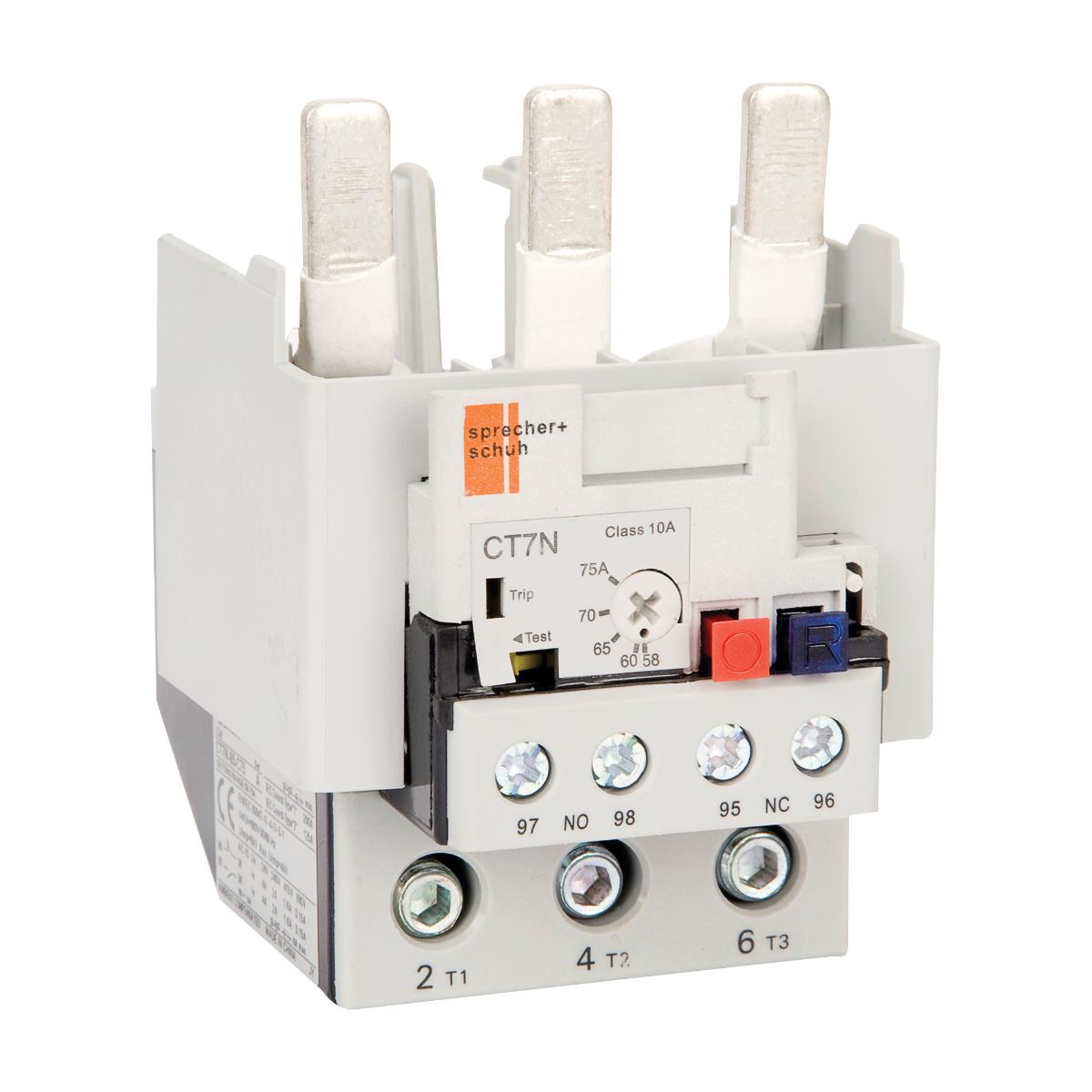

NHP CT7N85C75 S+S CT7N Thermal Overload Relay 58 to 75A Direct Mount Manual or Auto Reset for CA7 60 and 97A
Code: NHPCT7N85C75
Unit of measure:
EACH
Description
Overload Relay Thermal Adjustable range 58 to 75Amp Manual or Auto Reset, CT7N Series 1NO 1NC Contacts for CA7 60 and 97A Contactors
Features:
• The Sprecher + Schuh CT7N Motor Overload are motor protectors for IEC applications.
• Designed for use with CA7 Contactors and CA7 Reversing Contactors and feature adjustable trip settings, manual reset button, and a differential mechanism for sensitivity to phase-loss conditions
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Category | Contactor & Accessories |
| Standard | CSA, UL Listed |
| Max. rated operation voltage Ue | 690V |
| Depth | 101mm |
| Release class | CLASS 10 |
| Current Type | AC |
| Contactor | CA7-60/97 |
| Number of auxiliary contacts as normally open contact | 1 |
| Reset function automatic | Yes |
| Voltage | 690 V |
| Supplier Code | CT7N85C75 |
| Trip Class | Class 10 |
| Degree of Protection | IP00 |
| Height | 84.1mm |
| Reset function push-button | Yes |
| Width | 56mm |
| Number of auxiliary contacts as normally closed contact | 1 |
| Adjustable current range | 58-75 A |
| Temperature Rating | -20 to 60 deg C |
| Type of electrical connection of main circuit | Screw connection |
| Terminal Type | Screw |
| Range | CT7N Series |
| Frequency Rating | 50/60 Hz |
| Weight | 0.36kg |
| Brand Name | NHP |
| Item Name | Overload Relay |
| EAN/UPC | 2000000187327 |
| Type | Bi-Metallic/Thermal |
| Contact Configuration | 1 NO + 1 NC |
| Reset Type | Automatic/Manual |
| Mounting method | Direct attachment |
| ETIM Class | Thermal overload relay |
| Rated Current | 58 to 75Amp |
| Current | 58 - 75A |
