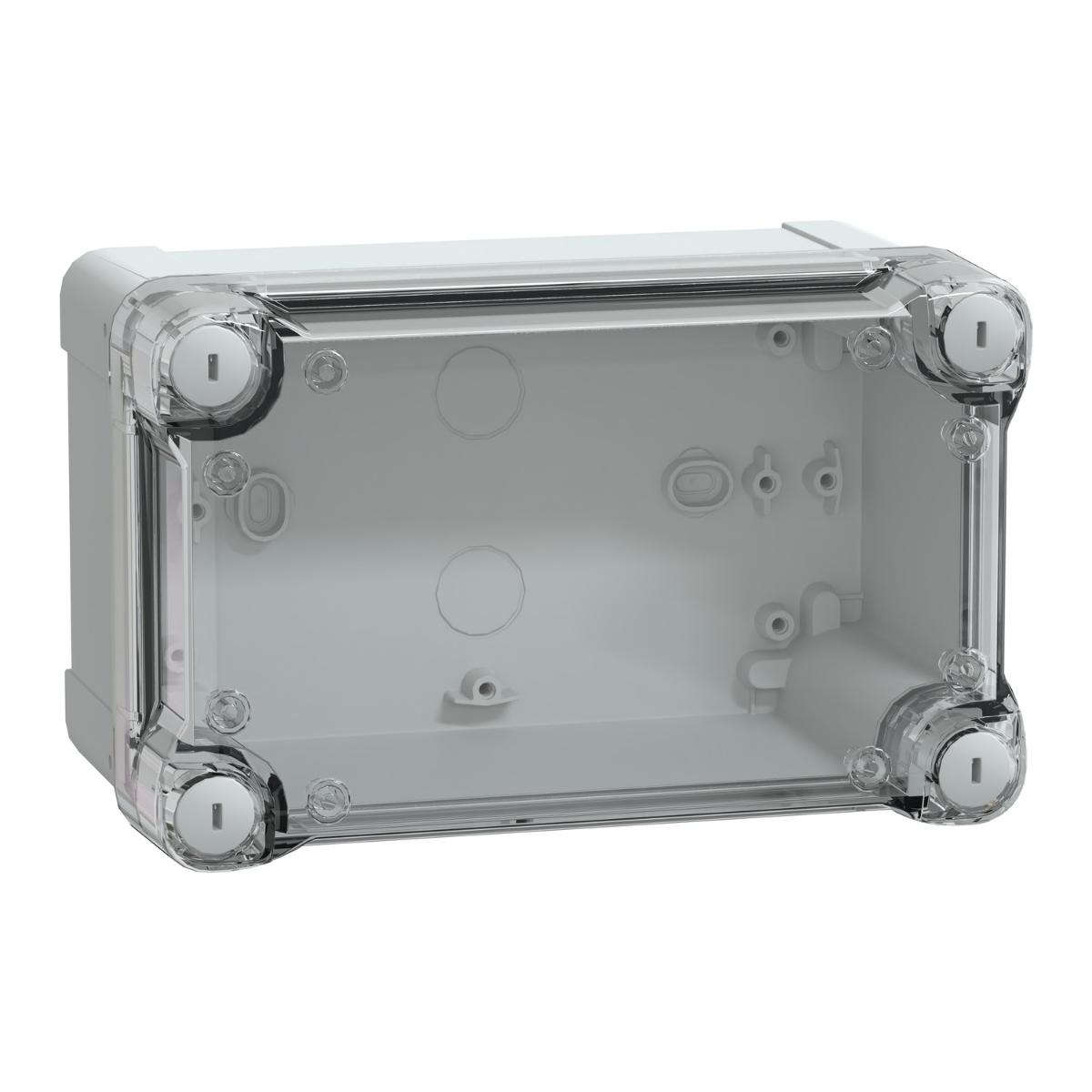

Schneider Electric NSYTBS191210HT ABS box, Thalassa, IP66, IK07, RAL7035, H192mm X W121mm X D105mm, Transparent cover
Code: SCHNSYTBS191210HT
Unit of measure:
EACH
Description
ABS IND BOX 192X121X105 HI TR
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Enclosure mounting | wall mounted |
| Cover fixing | plastic screws |
| Depth | 105mm |
| Ambient air temperature for operation | -25-60 °C |
| Colour | Transparent |
| Fire resistance | 650 °C conforming to IEC 60695-2-11 |
| Supplier Code | NSYTBS191210HT |
| Ambient air temperature for storage | -15-40 °C |
| Height | 192mm |
| Width | 121mm |
| Internal depth | 100mm |
| Electrical insulation class | class II |
| Lock type | captive screw flat outside sealed area |
| Device application | multi-purpose |
| Device composition | 1 cover |
| Material | ABS with 45% of post-industrial recycled content |
| Removable parts | cover by captive screws |
| Quantity per set | set of 2 |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| Internal height | 175mm |
| Range | Thalassa |
| Type of front cover | high transparent cover |
| Internal width | 105mm |
| Standards | IEC 62208 |
| Product certifications | TÜV |
| Brand Name | Schneider Electric |
| Body type | one piece moulded |
| Product name | Thalassa TBS |
| Net weight | 0.45 kg |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Product or component type | industrial box |
